3070024 | Phoenix Contact

Protective conductor terminal, screw connection, 0.14-6.0 mm², 2 pole, 20 A, 6 kV, gray, 3070024

Order No.: 60P5753
EAN: 4046356480253
MPN:
3070024
UT 4-PE/TG
Series: UT

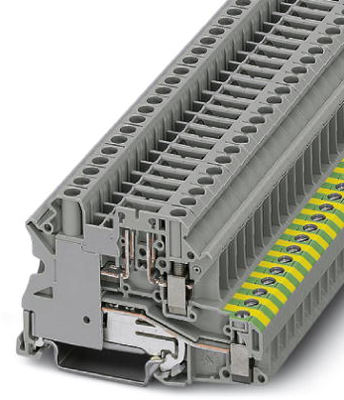

3070024 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
5.8429 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.8429 €

Ground modular terminal block, 3070024, Phoenix Contact

Ground modular terminal block, rated voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 47.5 mm
Länge 70.8 mm
Leiterquerschnitt 0,14-6,0 mm²
Nennstrom 20 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
