3070341 | Phoenix Contact

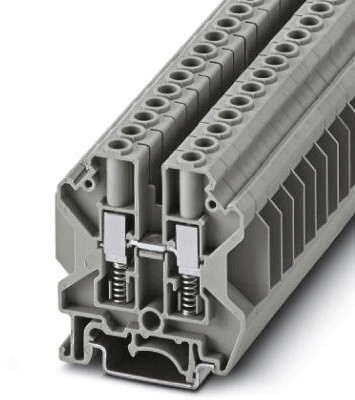

Feed-through terminal block, 3070341, Phoenix Contact

Feed-through terminal block, rated voltage: 1000 V, nominal current: 41 A, connection method: Screw connection with spring support, 1 level, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.

Features

• Large-surface labeling option for every terminal point
• Universal foot for mounting on NS 32 and NS 35 DIN rails
• The ISSBI isolator bridge bars support switchable cross connections with IS, here the screw has the function of a live contact
• The USST modular terminal blocks were specifically developed for use in the field of power supply
