3070435 | Phoenix Contact

Through terminal block, screw connection, 0.2-4.0 mm², 4 pole, 24 A, 8 kV, gray, 3070435

Order No.: 60P6073
EAN: 4046356569705
MPN:
3070435
VBSTB 4-FS (6-2,8-0,8)
Series: VBSTB

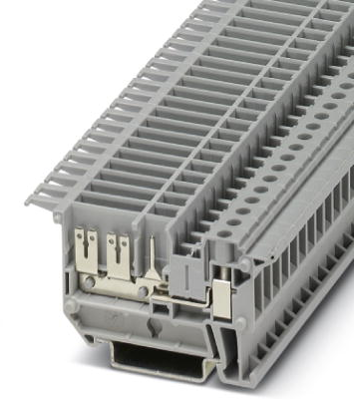

3070435 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.1293 € *
Available: 0 pcs.
Available in 10 days: 92,021 pcs.
Leadtime: 1 Week **
Total Price:
4.13 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.1293 €

Feed-through terminal block, 3070435, Phoenix Contact

Feed-through terminal block, rated voltage: 800 V, nominal current: 24 A, 1st level connection right, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 4
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 6.2 mm
Farbe grau
Höhe 39.5 mm
Länge 72 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 24 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
