3070613 | Phoenix Contact

Component terminal block, screw connection, 0.2-4.0 mm², 4 pole, 32 A, 6 kV, gray, 3070613

Order No.: 60P5378
EAN: 4046356580670
MPN:
3070613
UKK 5-2R/1K4/UL-UR/10K/O-UL
Series: UKK
3070613 Phoenix Contact Series Terminals

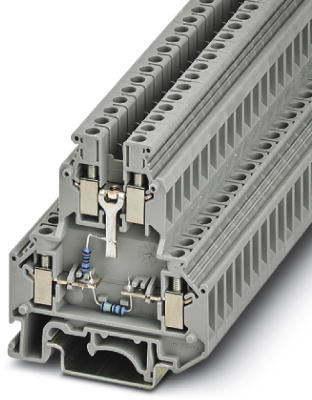

Image may differ
Unit Price (€ / pc.)
14.2205 € *
Available: 0 pcs.
Available in 10 days: 1,050 pcs.
Leadtime: 1 Week **
Total Price:
711.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
14.2205 €

Component terminal block, 3070613, Phoenix Contact

Component terminal block, with two soldered-in resistors, 1.4 kOhm and 10 kOhm, rated voltage: 500 V, nominal current: 32 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.2 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 4
Ausführung Bauelement-Reihenklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 62 mm
Länge 56 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 32 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
