3072637 | Phoenix Contact
Double level terminal, screw connection, 0.14-6.0 mm², 4 pole, 30 A, 8 kV, black, 3072637
Unit Price (€ / pc.)
4.4744 € *
Available: 0 pcs.
Available in 10 days: 550 pcs.
Leadtime: 1 Week **
Total Price:
4.47 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4744 €
10 pcs.
4.1174 €
50 pcs.
3.7485 €
100 pcs.
3.3677 €
*incl. VAT plus shipping costs
**Subject to prior sale

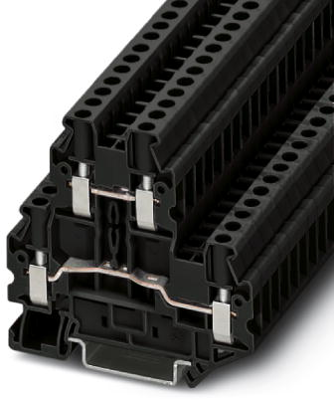

Double level terminal block, 3072637, Phoenix Contact
Double-level terminal block, rated voltage: 800 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: black.
Features
- Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
- As an option, the levels can be connected using the FBS‑PV UT vertical bridge
- For a clear overview, each terminal point supports large-surface labeling
- Tested for railway applications
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Doppelstockklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.2 mm | |
| Farbe | schwarz | |
| Höhe | 65 mm | |
| Länge | 69.9 mm | |
| Leiterquerschnitt | 0,14-6,0 mm² | |
| Nennstrom | 30 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
