3073047 | Phoenix Contact
Disconnect terminal, screw connection, 0.14-6.0 mm², 3 pole, 20 A, 6 kV, blue, 3073047
Unit Price (€ / pc.)
3.6176 € *
Available: 0 pcs.
Leadtime: On Request **

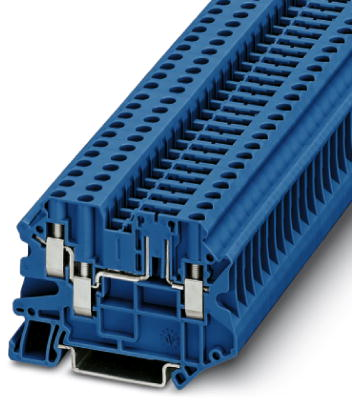

Disconnect terminal block, 3073047, Phoenix Contact
Disconnect terminal block, The max. load current must not be exceeded by the total current of all connected conductors. Current and voltage are determined by the plug used., With test socket screws for insertion of Test plug, rated voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 3 | |
| Version | disconnect terminal | |
| AWG cross-section | AWG 26 to 10 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Colour | blue | |
| Height | 47.5 mm | |
| Length | 65.4 mm | |
| Cable cross-section | 0.14-6.0 mm² | |
| Rated current | 20 A | |
| Pin number | 3 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
