3073827 | Phoenix Contact

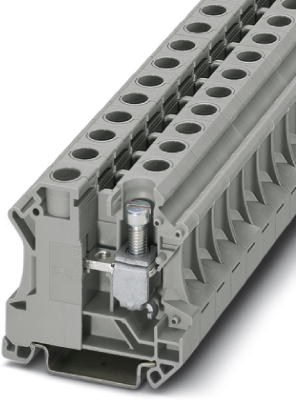

Installation terminal block, screw connection, 6.0-25 mm², 76 A, 6 kV, gray, 3073827
Unit Price (€ / pc.)
3.3677 € *
Available: 0 pcs.
Available in 10 days: 19,332 pcs.
Leadtime: 1 Week **
Installation terminal block, 3073827, Phoenix Contact
Installation terminal block, rated voltage: 400 V, nominal current: 76 A, Screw connection, 1st level connection right, Rated cross section: 16 mm², cross section: 6 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
- The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Installationsetagenklemme | |
| AWG-Leiterquerschnitt | AWG 10 bis 4 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 12.2 mm | |
| Farbe | grau | |
| Höhe | 50.5 mm | |
| Länge | 51 mm | |
| Leiterquerschnitt | 6,0-25 mm² | |
| Nennstrom | 76 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
