3073830 | Phoenix Contact

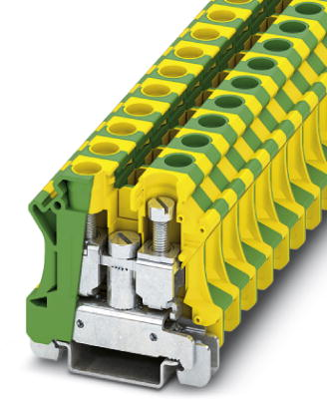

Protective conductor terminal, screw connection, 6.0-25 mm², 1 pole, 6 kV, yellow/green, 3073830
Unit Price (€ / pc.)
6.1285 € *
Available: 0 pcs.
Available in 10 days: 8,471 pcs.
Leadtime: 1 Week **
Installation ground terminal block, 3073830, Phoenix Contact
Installation ground terminal block, number of connections: 2, number of positions: 1, connection method: Screw connection, 1st level connection right, Rated cross section: 16 mm², cross section: 6 mm² - 25 mm², mounting: PE foot with mounting screw, M4, mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
- The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 10 bis 4 | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 12.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 50.5 mm | |
| Länge | 51 mm | |
| Leiterquerschnitt | 6,0-25 mm² | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
