3076035 | Phoenix Contact
Installation terminal block, screw connection, 0.2-4.0 mm², 24 A, 6 kV, gray, 3076035
Unit Price (€ / pc.)
3.2963 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0345 €
50 pcs.
2.7608 €
100 pcs.
2.4871 €
*incl. VAT plus shipping costs
**Subject to prior sale

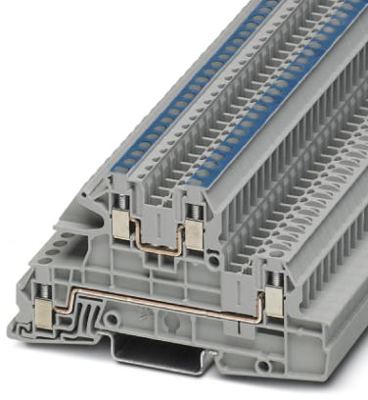

Installation level terminal block, 3076035, Phoenix Contact
Installation level terminal block, rated voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
- The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Installationsetagenklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 51.5 mm | |
| Länge | 93.5 mm | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Nennstrom | 24 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
