3076040 | Phoenix Contact

Protective conductor terminal, screw connection, 0.2-10 mm², 38 A, 6 kV, gray, 3076040

Order No.: 60P5863
EAN: 4046356817622
MPN:
3076040
UTI 6-PE/L/L
Series: UTI
3076040 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Available: 0 pcs.
Available in 10 days: 178 pcs.
Leadtime: 1 Week **
Total Price:
4.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.3554 €

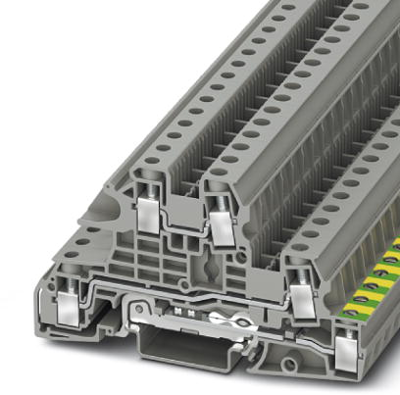

Installation ground terminal block, 3076040, Phoenix Contact

Installation ground terminal block, rated voltage: 400 V, nominal current: 38 A, Screw connection, Rated cross section: 6 mm², cross section: 0.2 mm²  - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Technical specifications
Anschluss Schraubanschluss
Ausführung Schutzleiterklemme
AWG-Leiterquerschnitt AWG 24 bis 8
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 8.2 mm
Farbe grau
Höhe 51.5 mm
Länge 95 mm
Leiterquerschnitt 0,2-10 mm²
Nennstrom 38 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
