3121025 | Phoenix Contact
Disconnect terminal, screw connection, 0.5-10 mm², 2 pole, 41 A, 4 kV, gray, 3121025
Unit Price (€ / pc.)
60.8090 € *
Available: 6 pcs.
Available in 10 days: 162 pcs.
Leadtime: 1 Week **
Total Price:
60.81 € *
Price list
Quantity
Price per unit*
1 pcs.
60.8090 €
2 pcs.
59.3810 €
5 pcs.
56.5250 €
10 pcs.
53.7642 €
*incl. VAT plus shipping costs
**Subject to prior sale

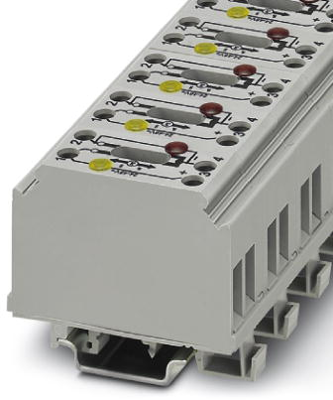

Disconnect terminal block, 3121025, Phoenix Contact
Disconnect terminal block, rated voltage: 24 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting: NS 35/7,5, NS 35/15, NS 32, color: gray.
Features

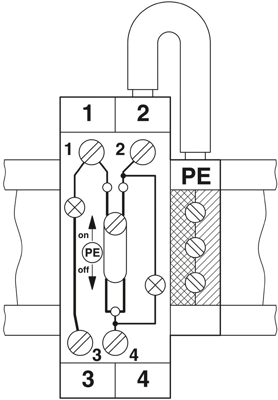

- When the disconnect slide is closed, switch position "on", the yellow light indicates grounded normal operation
- Once the disconnect slide has been opened to the "off" position, the red light indicates whether there is a ground fault in the control circuit
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trennklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Bemessungsspannung | 24 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 22.5 mm | |
| Farbe | grau | |
| Höhe | 53.5 mm | |
| Länge | 64.5 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 41 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
