3206474 | Phoenix Contact
Protective conductor terminal, quick connection, 0.5-2.5 mm², 3 pole, 8 kV, yellow/green, 3206474
Unit Price (€ / pc.)
5.6763 € *
Available: 0 pcs.
Available in 10 days: 12 pcs.
Leadtime: 1 Week **

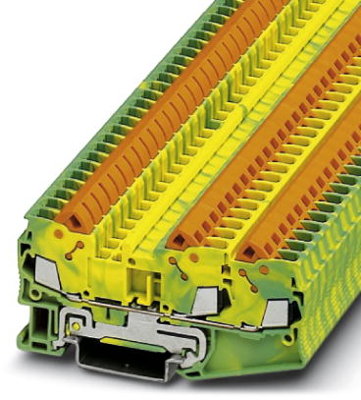

Ground modular terminal block, 3206474, Phoenix Contact
Ground modular terminal block, number of connections: 3, connection method: Quick connection, cross section: 0.5 mm² - 2.5 mm², mounting type: NS 35/7,5, NS 35/7,5, color: green-yellow.
Features
- Same shape and pitch as the feed-through terminal blocks
- Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
- Tested for railway applications
Technical specifications
| Anschluss | Schnellanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 14 | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 39.3 mm | |
| Länge | 82.5 mm | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
