3208198 | Phoenix Contact

Through terminal block, push-in connection, 0.14-1.5 mm², 4 pole, 10 mA, 6 kV, gray, 3208198

Order No.: 60P2440
EAN: 4046356669726
MPN:
3208198
PT 1,5/S-QUATTRO-LA 24 RD
Series: PT
Phoenix Contact
3208198 Phoenix Contact Series Terminals

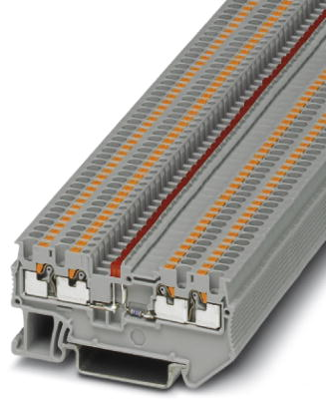

Image may differ
Unit Price (€ / pc.)
3.6533 € *
Available: 0 pcs.
Available in 10 days: 453 pcs.
Leadtime: 2 Weeks **
Total Price:
3.65 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6533 €
10 pcs.
3.3558 €
50 pcs.
3.0583 €
100 pcs.
2.7489 €
*incl. VAT plus shipping costs
**Subject to prior sale

Feed-through terminal block, 3208198, Phoenix Contact

Feed-through terminal block, with disconnected current bar, resistor, and red LED, rated voltage: 24 V, nominal current: 0.01 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm²  - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Connection push-in connection
Number of terminals 4
Version through terminal block
AWG cross-section AWG 26 to 16
Rated Voltage 24 V
Rated surge voltage 6 kV
Width 3.5 mm
Colour gray
Height 30.5 mm
Length 63.2 mm
Cable cross-section 0.14-1.5 mm²
Rated current 10 mA
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
