3209248 | Phoenix Contact

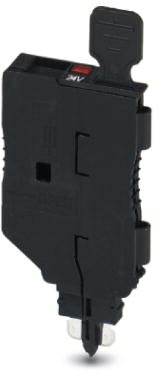

Fuse plug, Plug-in connection, black
Unit Price (€ / pc.)
12.3403 € *
Available: 0 pcs.
Available in 10 days: 28,092 pcs.
Leadtime: 1 Week **
Total Price:
12.34 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3403 €
10 pcs.
11.3526 €
50 pcs.
10.3411 €
100 pcs.
9.3058 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse plug, 3209248, Phoenix Contact
Fuse plug, Suitable for terminal blocks with a width of 5.2 mm and above with TG zone, rated voltage: 250 V, nominal current: 6.3 A, connection method: Plug-in connection, fuse type: G / 5 x 20, mounting type: Plug-in mounting, color: black.
Features
- Large-surface labeling option
- Versions with bipolar error display
- Test contacts on both sides of the fuse
- Can be used for overload/short-circuit protection
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Sicherungsstecker | |
| Bemessungsspannung | 250 V | |
| Breite | 6.2 mm | |
| Farbe | schwarz | |
| Höhe | 25 mm | |
| Länge | 28 mm | |
| Nennstrom | 6.3 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
