3209579 | Phoenix Contact

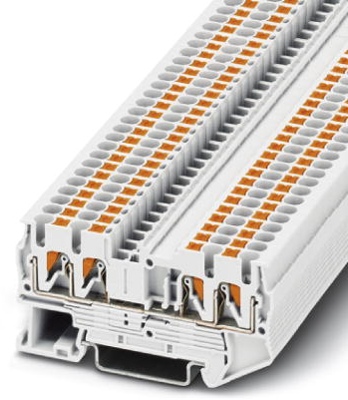

Through terminal block, push-in connection, 0.14-4.0 mm², 4 pole, 24 A, 8 kV, white, 3209579
Unit Price (€ / pc.)
1.9873 € *
Available: 49 pcs.
Available in 10 days: 18,849 pcs.
Leadtime: 1 Week **
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
10 pcs.
1.8207 €
50 pcs.
1.6541 €
100 pcs.
1.4994 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal block, 3209579, Phoenix Contact
Feed-through terminal block, rated voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: white.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Tested for railway applications
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | weiß | |
| Höhe | 35.3 mm | |
| Länge | 72.2 mm | |
| Leiterquerschnitt | 0,14-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
