3209609 | Phoenix Contact

Double level terminal, push-in connection, 0.14-4.0 mm², 4 pole, 22 A, 6 kV, gray, 3209609

Order No.: 60P3757
EAN: 4046356739924
MPN:
3209609
PTTBS 2,5/U-OG/O-GN
Series: PTTBS
3209609 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
2.9274 € *
Available: 0 pcs.
Available in 10 days: 21,649 pcs.
Leadtime: 1 Week **
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9274 €
10 pcs.
2.7013 €
50 pcs.
2.4514 €
100 pcs.
2.2134 €
*incl. VAT plus shipping costs
**Subject to prior sale

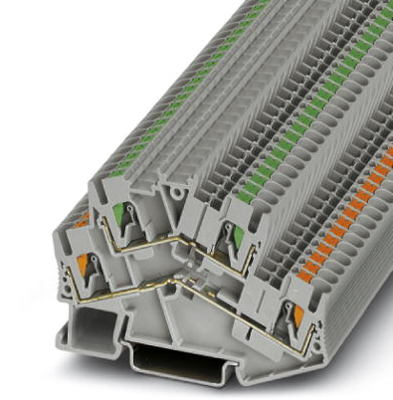

Double level terminal block, 3209609, Phoenix Contact

Double-level terminal block, with orange lower pusher and upper green pusher, cross section:  0. 14 mm²  - 4 mm², AWG: 26 - 12, connection method: push-in connection, width: 5.2 mm, color: gray, mounting type: NS 35/7.5, NS 35/15.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 4
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 55 mm
Länge 78 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 22 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
