3209659 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.14-4.0 mm², 3 pole, 6 kV, yellow/green, 3209659

Order No.: 60P2561
EAN: 4046356333405
MPN:
3209659
PT 2,5-TWIN/1P-PE
Series: PT
3209659 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.5577 € *
Available: 0 pcs.
Available in 10 days: 16,923 pcs.
Leadtime: 1 Week **
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
4.2007 €
50 pcs.
3.8199 €
100 pcs.
3.4391 €
*incl. VAT plus shipping costs
**Subject to prior sale

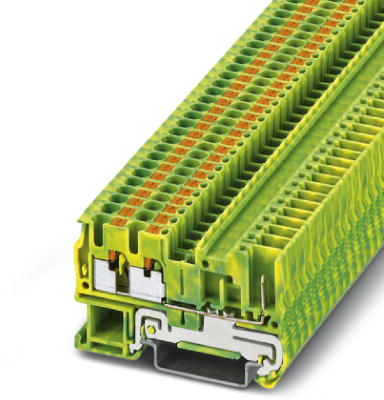

Ground modular terminal block, 3209659, Phoenix Contact

Ground modular terminal block, number of connections: 3, connection method: Push-in / plug connection, 1 level, cross section: 0.14 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
  • Tested for railway applications
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 3
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe gelb/grün
Höhe 36.5 mm
Länge 60.5 mm
Leiterquerschnitt 0,14-4,0 mm²
Polzahl 3-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
