3209992 | Phoenix Contact
Plug, push-in connection, 0.14-4.0 mm², 14 pole, 24 A, 6 kV, gray, 3209992
Unit Price (€ / pc.)
12.5545 € *
Available: 0 pcs.
Available in 10 days: 533 pcs.
Leadtime: 2 Weeks **
Total Price:
12.55 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5545 €
10 pcs.
11.5549 €
50 pcs.
10.5196 €
100 pcs.
9.4605 €
*incl. VAT plus shipping costs
**Subject to prior sale

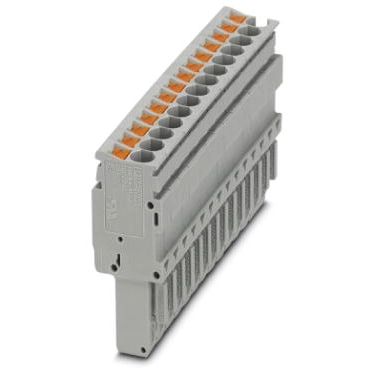

Plug, 3209992, Phoenix Contact
Plug, rated voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², color: gray.
Features
- Large-surface labeling option
- The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
- Tested for railway applications
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 14 | |
| Version | plug | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 72.8 mm | |
| Colour | gray | |
| Height | 40.2 mm | |
| Length | 15.8 mm | |
| Cable cross-section | 0.14-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 14 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
