3210059 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.14-4.0 mm², 2 pole, 6 kV, yellow/green, 3210059
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Available in 10 days: 9,803 pcs.
Leadtime: 1 Week **

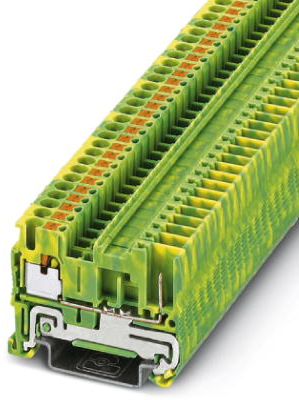

Ground modular terminal block, 3210059, Phoenix Contact
Ground modular terminal block, number of connections: 2, connection method: Push-in / plug connection, 1 level, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Tested for railway applications
Technical specifications
Anschluss | Push-in-Anschluss | |
Anzahl der Klemmstellen | 2 | |
Ausführung | Schutzleiter-Reihenklemme | |
AWG-Leiterquerschnitt | AWG 26 bis 12 | |
Bemessungsstoßspannung | 6 kV | |
Breite | 5.2 mm | |
Farbe | gelb/grün | |
Höhe | 36.5 mm | |
Länge | 48.5 mm | |
Leiterquerschnitt | 0,14-4,0 mm² | |
Polzahl | 2-polig |
Download
Logistics
Ursprungsland | DE |
Zolltarifnummer | 85369010 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
