3210143 | Phoenix Contact

Plug, push-in connection, 0.14-4.0 mm², 1 pole, 24 A, 6 kV, yellow/green, 3210143

Order No.: 60P2241
EAN: 4046356333559
MPN:
3210143
PP-H 2,5/1-R GNYE
Series: PP-H
Phoenix Contact
3210143 Phoenix Contact Series Terminals
Image may differ

As a private customer, you can buy this item as soon as we have it back in stock.

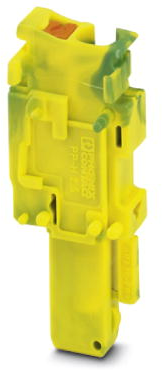

Plug, 3210143, Phoenix Contact

Connector element right, left housing with engagement pin, right closed with cover.

Features

  • Large-surface labeling option
  • The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
  • Tested for railway applications
Technical specifications
Connection push-in connection
Number of terminals 1
Version plug
AWG cross-section AWG 26 to 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour yellow/green
Height 40.2 mm
Length 15.8 mm
Cable cross-section 0.14-4.0 mm²
Rated current 24 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
