3210156 | Phoenix Contact

Knife disconnect terminal, push-in connection, 0.14-4.0 mm², 2 pole, 20 A, 6 kV, gray, 3210156

Order No.: 09H8830
EAN: 4046356333597
MPN:
3210156
PIT 2,5-MT
Series: PIT
Phoenix Contact
3210156 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
3.5581 € *
Available: 40 pcs.
Leadtime: 5 Weeks **
Total Price:
3.56 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5581 €
10 pcs.
3.2725 €
50 pcs.
2.9750 €
100 pcs.
2.6775 €
*incl. VAT plus shipping costs
**Subject to prior sale

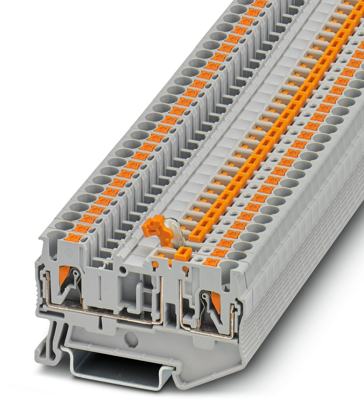

Knife-disconnect terminal block, 3210156, Phoenix Contact

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray

Features

  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Technical specifications
Connection push-in connection
Number of terminals 2
Version knife disconnect terminal
AWG cross-section AWG 26 to 12
Rated Voltage 400 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 36.5 mm
Length 62 mm
Cable cross-section 0.14-4.0 mm²
Rated current 20 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
