3210230 | Phoenix Contact

Disconnect terminal, push-in connection, 0.14-4.0 mm², 16 A, 6 kV, gray, 3210230

Order No.: 60P3665
EAN: 4046356863285
MPN:
3210230
PTT 2,5-L/TG
Series: PTT
3210230 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
5.8548 € *
Available: 0 pcs.
Available in 10 days: 1,454 pcs.
Leadtime: 1 Week **
Total Price:
5.85 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.8548 €

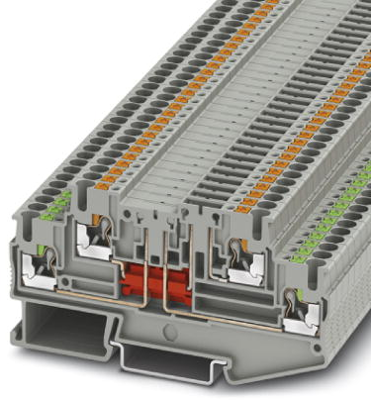

Disconnect terminal block, 3210230, Phoenix Contact

Disconnect terminal block, with isolating plug, rated voltage: 400 V, nominal current: 16 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Ausführung Trennklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 45.8 mm
Länge 92.4 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 16 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
