3210327 | Phoenix Contact

Disconnect terminal, push-in connection, 0.14-1.5 mm², 4 pole, 10 A, 6 kV, blue, 3210327

Order No.: 60P2447
EAN: 4046356905695
MPN:
3210327
PT 1,5/S-QUATTRO-TG BU
Series: PT
3210327 Phoenix Contact Series Terminals

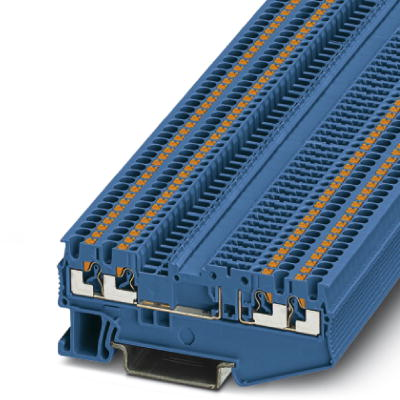

Image may differ
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.9393 €
50 pcs.
2.6775 €
100 pcs.
2.4038 €
*incl. VAT plus shipping costs
**Subject to prior sale

Disconnect terminal block, 3210327, Phoenix Contact

Disconnect terminal block, rated voltage: 400 V, nominal current: 10 A, 1 level, connection method: Push-in connection, Rated cross section: 1.5 mm², cross section: 0.14 mm²  - 1.5 mm², mounting: NS 35/7,5, NS 35/15, color: blue.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 4
Ausführung Trennklemme
AWG-Leiterquerschnitt AWG 26 bis 16
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 3.5 mm
Farbe blau
Höhe 30.5 mm
Länge 76.9 mm
Leiterquerschnitt 0,14-1,5 mm²
Nennstrom 10 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
