3210403 | Phoenix Contact
Disconnect terminal, push-in connection, 0.14-4.0 mm², 20 A, 6 kV, blue, 3210403
Unit Price (€ / pc.)
8.3776 € *
Available: 0 pcs.
Leadtime: On Request **

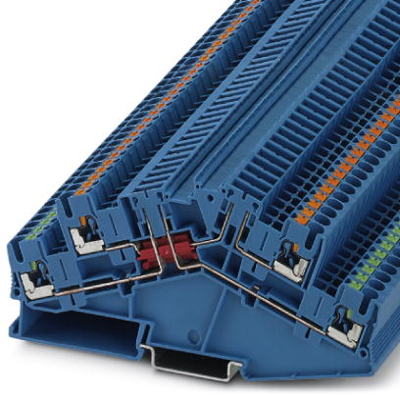

Disconnect terminal block, 3210403, Phoenix Contact
Disconnect terminal block, double level with angled contour and two disconnect points, rated voltage: 400 V, nominal current: 20 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trennklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | blau | |
| Höhe | 63.1 mm | |
| Länge | 127.5 mm | |
| Leiterquerschnitt | 0,14-4,0 mm² | |
| Nennstrom | 20 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
