3210442 | Phoenix Contact
Motor connection terminal, push-in connection, 0.2-6.0 mm², 26 A, 6 kV, gray, 3210442
Unit Price (€ / pc.)
6.7711 € *
Available: 0 pcs.
Available in 10 days: 1,195 pcs.
Leadtime: 1 Week **

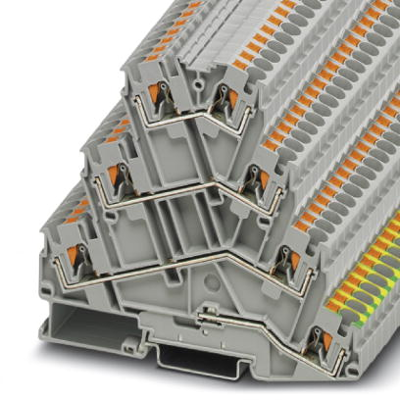

Motor terminal block, 3210442, Phoenix Contact
Motor terminal block, four-level, connection method: push-in connection, cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 6.2 mm, height: 95.4 mm, color: gray, mounting type: NS 35/7,5, NS 35/15.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Ausführung | Motoranschlussklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 96.9 mm | |
| Länge | 104.4 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennstrom | 26 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
