3210499 | Phoenix Contact

Multi-level clamp, push-in connection, 0.14-4.0 mm², 6 pole, 20 A, 6 kV, gray, 3210499

Order No.: 09H8820
EAN: 4046356422574
MPN:
3210499
PIT 2,5-3L
Series: PIT

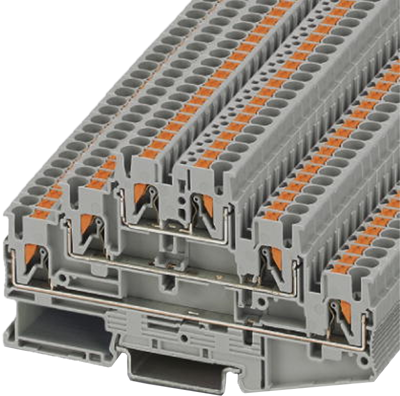

3210499 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
2.9988 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.9988 €

Multi-level terminal block, 3210499, Phoenix Contact

Multi-level terminal block, Nominal voltage: 500 V, Nominal current: 20 A, Connection method: Push-in connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², Cross section: 0.14 mm² - 4 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray

Features

  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • Tested for railway applications
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 6
Ausführung Mehrstockklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 58 mm
Länge 102 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 20 A
Polzahl 6-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
