3210602 | Phoenix Contact

Double level terminal, push-in connection, 0.14-4.0 mm², 6 pole, 8 kV, yellow/green, 3210602

Order No.: 60P3783
EAN: 4055626004082
MPN:
3210602
PTTBS 2,5-TWIN-PE
Series: PTTBS
3210602 Phoenix Contact Series Terminals

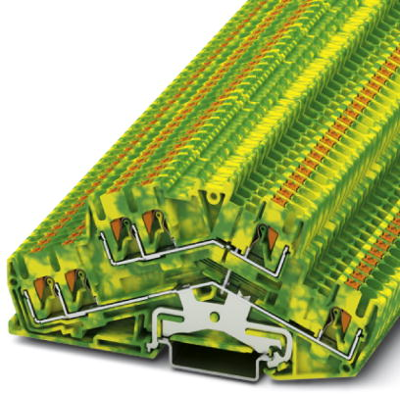

Image may differ
Unit Price (€ / pc.)
6.1285 € *
Available: 0 pcs.
Available in 10 days: 380 pcs.
Leadtime: 1 Week **
Total Price:
6.13 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.1285 €

Double level terminal block, 3210602, Phoenix Contact

Double-level terminal block, number of connections: 6, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsstoßspannung 8 kV
Breite 5.2 mm
Farbe gelb/grün
Höhe 55 mm
Länge 111.8 mm
Leiterquerschnitt 0,14-4,0 mm²
Polzahl 6-polig
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
