3210605 | Phoenix Contact

Double level terminal, push-in connection, 0.14-4.0 mm², 4 pole, 18 A, 6 kV, blue, 3210605

Order No.: 60P3779
EAN: 4055626004419
MPN:
3210605
PTTBS 2,5-TWIN/2P BU
Series: PTTBS
3210605 Phoenix Contact Series Terminals

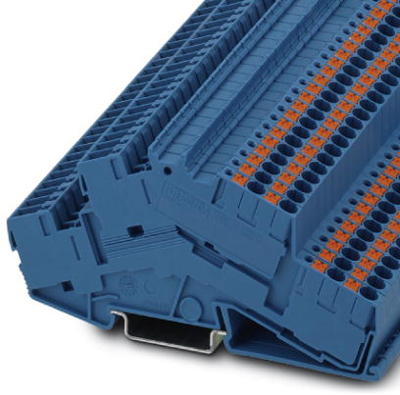

Image may differ
Unit Price (€ / pc.)
4.7005 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7005 €
10 pcs.
4.3316 €
50 pcs.
3.9389 €
100 pcs.
3.5462 €
*incl. VAT plus shipping costs
**Subject to prior sale

Double level terminal block, 3210605, Phoenix Contact

Double-level terminal block, rated voltage: 500 V, nominal current: 18 A, connection method: Push-in / plug connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Version Doppelstockklemme
Number of terminals 4
Pin number 4-polig
Cable cross-section 0,14-4,0 mm²
AWG cross-section AWG 26 bis 12
Rated surge voltage 6 kV
Rated current 18 A
Rated Voltage 500 V
Degree of soiling 3
Length 111.8 mm
Width 5.2 mm
Height 45.8 mm
Connection Push-in-Anschluss
Colour blau
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
