3210607 | Phoenix Contact

Double level terminal, push-in connection, 0.14-4.0 mm², 6 pole, 18 A, 6 kV, gray, 3210607

Order No.: 60P3781
EAN: 4055626004433
MPN:
3210607
PTTBS 2,5-TWIN/2P-PV
Series: PTTBS
3210607 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Available in 10 days: 145 pcs.
Leadtime: 1 Week **
Total Price:
3.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8437 €

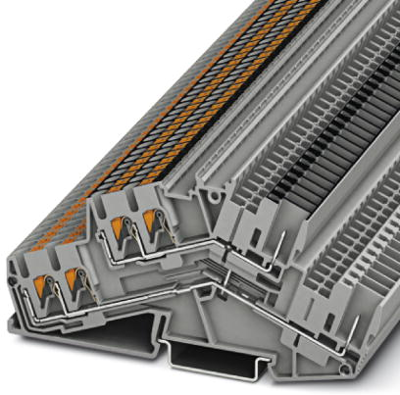

Double level terminal block, 3210607, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 18 A, connection method: Push-in / plug connection, 1st and 2nd level, Rated cross section: 2.5 mm²  , cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 6
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 45.8 mm
Länge 111.8 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 18 A
Polzahl 6-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
