3210611 | Phoenix Contact
Double level terminal, push-in connection, 0.14-4.0 mm², 8 pole, 6 kV, yellow/green, 3210611
Unit Price (€ / pc.)
6.783 € *
Available: 0 pcs.
Available in 10 days: 237 pcs.
Leadtime: 1 Week **

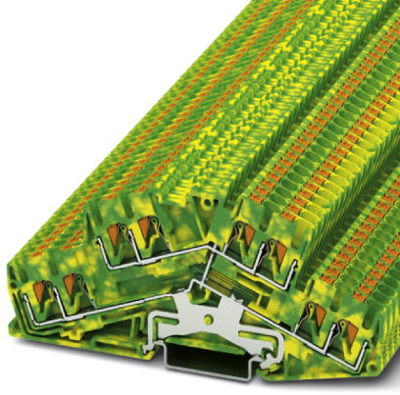

Double level terminal block, 3210611, Phoenix Contact
Double-level terminal block, number of connections: 8, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 8 | |
| Version | double level terminal | |
| AWG cross-section | AWG 26 to 12 | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | yellow/green | |
| Height | 55 mm | |
| Length | 115.2 mm | |
| Cable cross-section | 0.14-4.0 mm² | |
| Pin number | 8 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
