3210612 | Phoenix Contact

Double level terminal, push-in connection, 0.14-4.0 mm², 8 pole, 20 A, 6 kV, gray, 3210612

Order No.: 60P3774
EAN: 4055626004488
MPN:
3210612
PTTBS 2,5-QUATTRO-PV
Series: PTTBS

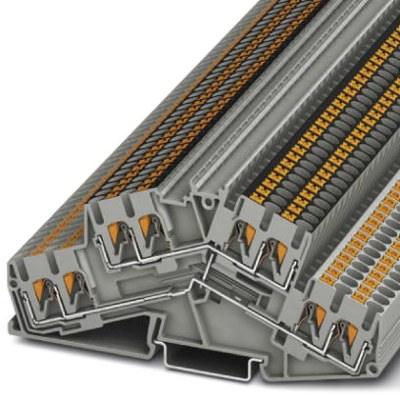

3210612 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.7124 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
4.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.7124 €

Double level terminal block, 3210612, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 800 V, nominal current: 20 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 8
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 800 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 55 mm
Länge 115.2 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 20 A
Polzahl 8-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
