3211019 | Phoenix Contact

Through terminal block, push-in connection, 0.14-2.5 mm², 4 pole, 17.5 A, 6 kV, gray, 3211019

Order No.: 60P2500
EAN: 4055626066431
MPN:
3211019
PT 2,5/S-QUATTRO
Series: PT
Phoenix Contact
3211019 Phoenix Contact Series Terminals

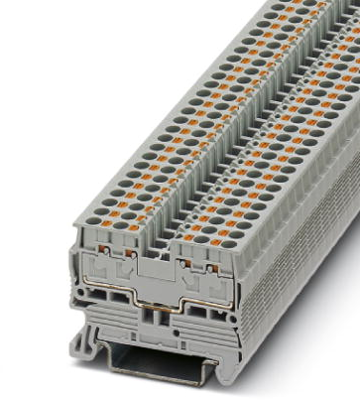

Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available: 0 pcs.
Available in 10 days: 19,647 pcs.
Leadtime: 2 Weeks **
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.7731 €
50 pcs.
1.6065 €
100 pcs.
1.4518 €
*incl. VAT plus shipping costs
**Subject to prior sale

Feed-through terminal block, 3211019, Phoenix Contact

Feed-through terminal block, rated voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 2.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Connection push-in connection
Number of terminals 4
Version through terminal block
AWG cross-section AWG 26 to 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 35.3 mm
Length 48.6 mm
Cable cross-section 0.14-2.5 mm²
Rated current 17.5 A
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
