3211280 | Phoenix Contact

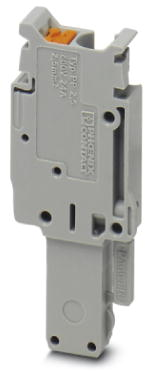

Plug, push-in connection, 0.14-4.0 mm², 1 pole, 24 A, 6 kV, gray, 3211280

Order No.: 60P2060
EAN: 4055626285535
MPN:
3211280
PP 2,5/ 1
Series: PP
Phoenix Contact
3211280 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Available in 10 days: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3804 €
10 pcs.
1.2733 €
50 pcs.
1.1543 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug, 3211280, Phoenix Contact

Plug, rated voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 4 mm², color: gray.

Features

  • Maximum safety, thanks to touch-proof design
  • The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
  • Safe to use, thanks to powerful, vibration-proof plug-in contact
  • Protection against mismatching, thanks to individual coding options
Technical specifications
Connection push-in connection
Number of terminals 1
Version plug
AWG cross-section AWG 26 to 12
Rated Voltage 800 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 41.2 mm
Length 16 mm
Cable cross-section 0.14-4.0 mm²
Rated current 24 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
