3211427 | Phoenix Contact
Component terminal block, push-in connection, 0.14-4.0 mm², 4 pole, 500 mA, 6 kV, gray, 3211427
Unit Price (€ / pc.)
4.1412 € *
Available: 0 pcs.
Available in 10 days: 1,150 pcs.
Leadtime: 2 Weeks **

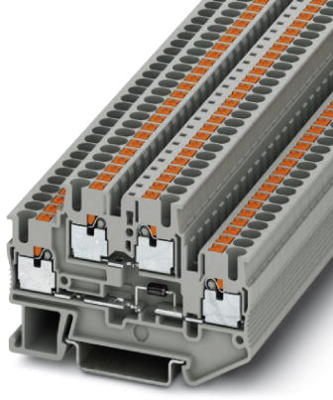

Component terminal block, 3211427, Phoenix Contact
Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated 1N4007 diode, rated voltage: 500 V, nominal current: 0.5 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 4 | |
| Version | Component terminal block | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gray | |
| Height | 55 mm | |
| Length | 68 mm | |
| Cable cross-section | 0.14-4.0 mm² | |
| Rated current | 500 mA | |
| Pin number | 4 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
