3211498 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.5-10 mm², 3 pole, 8 kV, yellow/green, 3211498

Order No.: 60P2703
EAN: 4046356496070
MPN:
3211498
PT 6-TWIN-PE
Series: PT
3211498 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
5.0337 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.0337 €

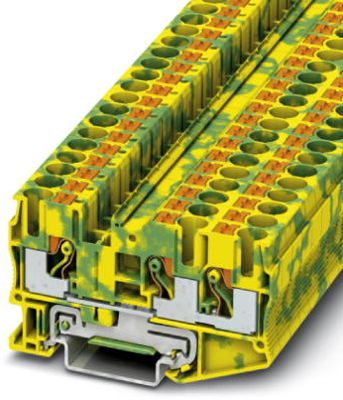

Ground modular terminal block, 3211498, Phoenix Contact

Ground modular terminal block, number of connections: 3, connection method: Push-in connection, 1 level, cross section: 0.5 mm²  - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
  • Tested for railway applications
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 3
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 20 bis 8
Bemessungsstoßspannung 8 kV
Breite 8.2 mm
Farbe gelb/grün
Höhe 43.5 mm
Länge 74.2 mm
Leiterquerschnitt 0,5-10 mm²
Polzahl 3-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
