3211802 | Phoenix Contact

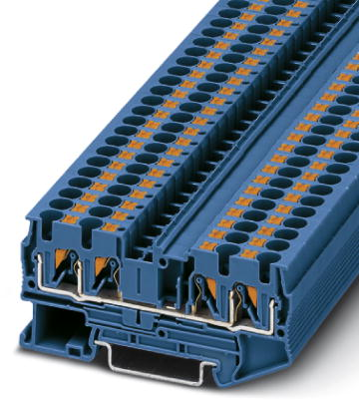

Through terminal block, push-in connection, 0.2-6.0 mm², 4 pole, 32 A, 8 kV, blue, 3211802
Unit Price (€ / pc.)
2.2253 € *
Available: 0 pcs.
Available in 10 days: 8,401 pcs.
Leadtime: 2 Weeks **
Total Price:
2.23 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2253 €
10 pcs.
2.0468 €
50 pcs.
1.8683 €
100 pcs.
1.6779 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal block, 3211802, Phoenix Contact
Feed-through terminal block, Nominal voltage: 800 V, Nominal current: 32 A, Connection method: Push-in connection, Rated cross section: 4 mm², Cross section: 0.2 mm² - 6 mm², Mounting type: NS 35/7,5, NS 35/15, Color: blue
Features
- In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
- The compact design and front connection enable wiring in a confined space
- The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- Tested for railway applications
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 4 | |
| Version | through terminal block | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 6.2 mm | |
| Colour | blue | |
| Height | 35.3 mm | |
| Length | 77 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 32 A | |
| Pin number | 4 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
