3211809 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.2-6.0 mm², 4 pole, 8 kV, yellow/green, 3211809
Unit Price (€ / pc.)
4.3197 € *
Available: 0 pcs.
Available in 10 days: 43,784 pcs.
Leadtime: 2 Weeks **

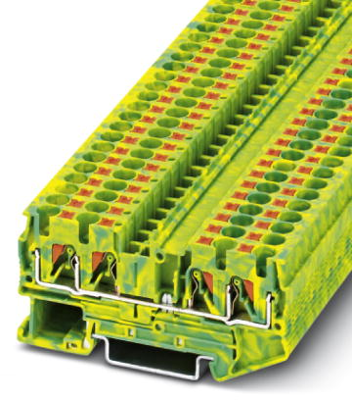

Ground modular terminal block, 3211809, Phoenix Contact
Ground modular terminal block, number of connections: 4, connection method: Push-in connection, 1 level, cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Tested for railway applications
Technical specifications
| Connection | Push-in-Anschluss | |
| Number of terminals | 4 | |
| Version | Schutzleiter-Reihenklemme | |
| AWG cross-section | AWG 24 bis 10 | |
| Rated surge voltage | 8 kV | |
| Width | 6.2 mm | |
| Colour | gelb/grün | |
| Height | 36.5 mm | |
| Length | 77 mm | |
| Cable cross-section | 0,2-6,0 mm² | |
| Pin number | 4-polig | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
