3211827 | Phoenix Contact

Double level terminal, push-in connection, 0.2-6.0 mm², 4 pole, 30 A, 6 kV, blue, 3211827

Order No.: 60P3729
EAN: 4055626462110
MPN:
3211827
PTTB 4-PV BU
Series: PTTB
3211827 Phoenix Contact Series Terminals

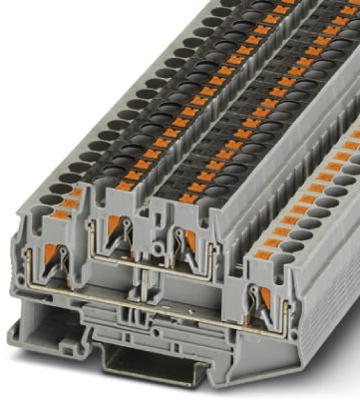

Image may differ
Unit Price (€ / pc.)
4.3316 € *
Available: 0 pcs.
Available in 10 days: 300 pcs.
Leadtime: 1 Week **
Total Price:
4.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.3316 €

Double level terminal block, 3211827, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 30 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
  • Tested for railway applications
Technical specifications
Ausführung Doppelstockklemme
Anzahl der Klemmstellen 4
Polzahl 4-polig
Leiterquerschnitt 0,2-6,0 mm²
AWG-Leiterquerschnitt AWG 24 bis 10
Bemessungsstoßspannung 6 kV
Nennstrom 30 A
Bemessungsspannung 500 V
Verschmutzungsgrad 3
Länge 83.5 mm
Breite 6.2 mm
Höhe 47.5 mm
Anschluss Push-in-Anschluss
Farbe blau
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
