3211854 | Phoenix Contact
Protective conductor double level terminal, push-in connection, 0.2-6.0 mm², 6 kV, yellow/green, 3211854
Unit Price (€ / pc.)
6.7116 € *
Available: 0 pcs.
Available in 10 days: 2,878 pcs.
Leadtime: 2 Weeks **

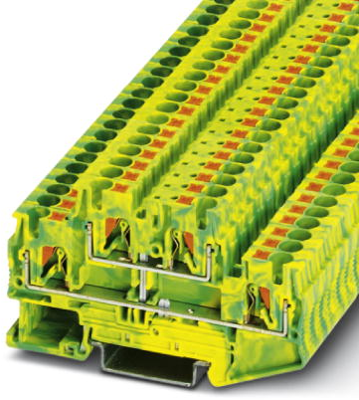

Protective conductor double level terminal block, 3211854, Phoenix Contact
Protective conductor double-level terminal block, connection method: Push-in connection, 1st and 2nd level, cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Tested for railway applications
Technical specifications
| Connection | Push-in-Anschluss | |
| Version | Schutzleiter-Doppelstockklemme | |
| AWG cross-section | AWG 24 bis 10 | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Colour | gelb/grün | |
| Height | 47.5 mm | |
| Length | 83.5 mm | |
| Cable cross-section | 0,2-6,0 mm² | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
