3211935 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.14-4.0 mm², 3 pole, 8 kV, yellow/green, 3211935

Order No.: 60P3639
EAN: 4046356499538
MPN:
3211935
PTS 2,5-TWIN-PE
Series: PTS
3211935 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
5.0099 € *
Available: 0 pcs.
Available in 10 days: 19,778 pcs.
Leadtime: 1 Week **
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.6172 €
50 pcs.
4.2007 €
100 pcs.
3.7723 €
*incl. VAT plus shipping costs
**Subject to prior sale

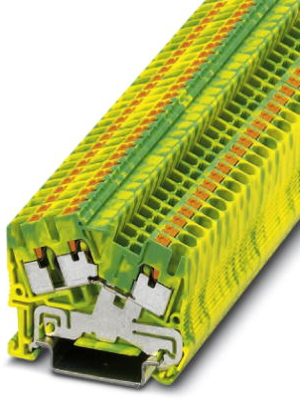

Ground modular terminal block, 3211935, Phoenix Contact

Ground modular terminal block, number of connections: 3, connection method: Push-in connection, 1 level, cross section: 0.14 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • 2, 3, and 4-conductor terminal blocks with the same shape
  • Ground terminal blocks of the same shape are available
  • The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
  • Angled conductor entry for use in flat terminal boxes
  • Large space saving when used in concealed wiring systems
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 3
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsstoßspannung 8 kV
Breite 5.2 mm
Farbe gelb/grün
Höhe 43 mm
Länge 49 mm
Leiterquerschnitt 0,14-4,0 mm²
Polzahl 3-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
