3211994 | Phoenix Contact
Through terminal block, push-in connection, 0.14-4.0 mm², 4 pole, 24 A, 8 kV, orange, 3211994
Unit Price (€ / pc.)
2.0944 € *
Available: 0 pcs.
Available in 10 days: 4,364 pcs.
Leadtime: 1 Week **
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0944 €
10 pcs.
1.9159 €
50 pcs.
1.7493 €
100 pcs.
1.5708 €
*incl. VAT plus shipping costs
**Subject to prior sale

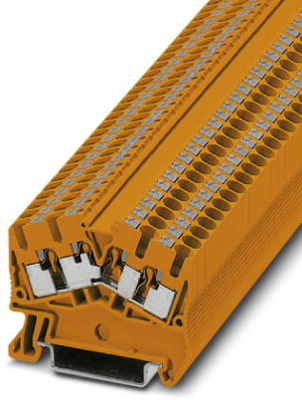

Feed-through terminal block, 3211994, Phoenix Contact
Feed-through terminal block, rated voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: orange
Features
- 2, 3, and 4-conductor terminal blocks with the same shape
- Ground terminal blocks of the same shape are available
- The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
- Angled conductor entry for use in flat terminal boxes
- Large space saving when used in concealed wiring systems
Technical specifications
| Ausführung | Durchgangsklemme | |
| Anzahl der Klemmstellen | 4 | |
| Polzahl | 4-polig | |
| Leiterquerschnitt | 0,14-4,0 mm² | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 24 A | |
| Bemessungsspannung | 800 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 49 mm | |
| Breite | 5.2 mm | |
| Höhe | 43 mm | |
| Anschluss | Push-in-Anschluss | |
| Farbe | orange |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
