3212007 | Phoenix Contact

Through terminal block, push-in connection, 0.2-6.0 mm², 2 pole, 32 A, 8 kV, blue, 3212007

Order No.: 60P2582
EAN: 4046356482899
MPN:
3212007
PT 4/1P BU
Series: PT
Phoenix Contact
3212007 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Available in 10 days: 588 pcs.
Leadtime: 2 Weeks **
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3804 €
10 pcs.
1.2733 €
50 pcs.
1.1543 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
**Subject to prior sale

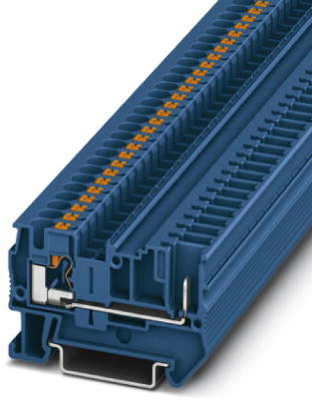

Feed-through terminal block, 3212007, Phoenix Contact

Feed-through terminal block, rated voltage: 800 V, nominal current: 32 A, connection method: Push-in / plug connection, 1st level connection left, Rated cross section: 4 mm², cross section: 0. 2 mm²  - 6 mm², 1st level connection right, mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
  • Tested for railway applications
Technical specifications
Connection push-in connection
Number of terminals 2
Version through terminal block
AWG cross-section AWG 24 to 10
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 6.2 mm
Colour blue
Height 36.5 mm
Length 56 mm
Cable cross-section 0.2-6.0 mm²
Rated current 32 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
