3212011 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.14-4.0 mm², 4 pole, 8 kV, yellow/green, 3212011

Order No.: 60P3636
EAN: 4046356499569
MPN:
3212011
PTS 2,5-QUATTRO-PE
Series: PTS
Phoenix Contact
3212011 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
3.9865 € *
Available: 0 pcs.
Available in 10 days: 162 pcs.
Leadtime: 2 Weeks **
Total Price:
3.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.9865 €

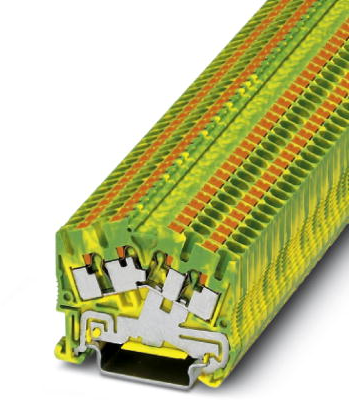

Ground modular terminal block, 3212011, Phoenix Contact

Ground modular terminal block, number of connections: 4, connection method: Push-in connection, 1 level, cross section: 0.14 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • 2, 3, and 4-conductor terminal blocks with the same shape
  • Ground terminal blocks of the same shape are available
  • The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
  • Angled conductor entry for use in flat terminal boxes
  • Large space saving when used in concealed wiring systems
Technical specifications
Connection push-in connection
Number of terminals 4
Version protective conductor terminal
AWG cross-section AWG 26 to 12
Rated surge voltage 8 kV
Width 5.2 mm
Colour yellow/green
Height 43 mm
Length 49 mm
Cable cross-section 0.14-4.0 mm²
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
