3212163 | Phoenix Contact
Disconnect terminal, push-in connection, 0.5-10 mm², 20 A, 6 kV, gray, 3212163
Unit Price (€ / pc.)
4.3911 € *
Available: 0 pcs.
Available in 10 days: 1,129 pcs.
Leadtime: 1 Week **
Total Price:
4.39 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3911 €
10 pcs.
4.0341 €
50 pcs.
3.6771 €
100 pcs.
3.3082 €
*incl. VAT plus shipping costs
**Subject to prior sale

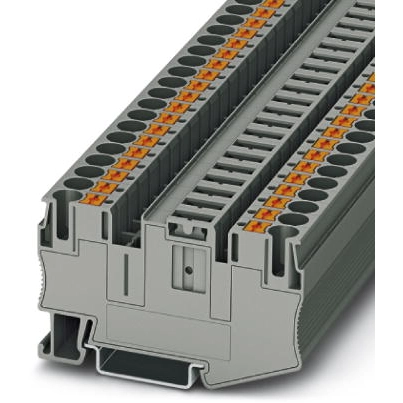

Disconnect terminal block, 3212163, Phoenix Contact
Disconnect terminal block, rated voltage: 500 V, nominal current: 20 A, 1 level, connection method: Push-in connection, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trennklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 8.2 mm | |
| Farbe | grau | |
| Höhe | 42.2 mm | |
| Länge | 74.1 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 20 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
