3212196 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.5-10 mm², 2 pole, 6 kV, yellow/green, 3212196
Unit Price (€ / pc.)
8.8298 € *
Available: 0 pcs.
Available in 10 days: 3,584 pcs.
Leadtime: 2 Weeks **

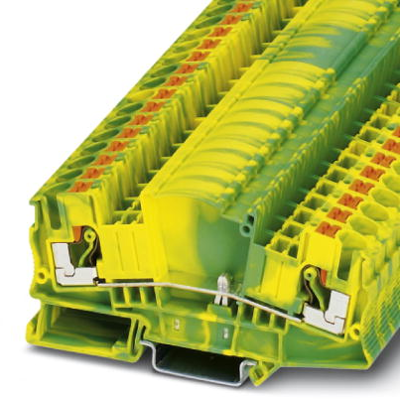

Ground modular terminal block, 3212196, Phoenix Contact
Ground modular terminal block, connection method: Push-in connection, 1 level, cross section: 0.5 mm² - 10 mm², color: green-yellow.
Features
- Clear selection thanks to printed switching symbols
- Easy operation
- Compact design
- Flexible and comprehensive accessories
- Contact made via screw terminal points
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Version | protective conductor terminal | |
| AWG cross-section | AWG 20 to 10 | |
| Rated surge voltage | 6 kV | |
| Width | 8.2 mm | |
| Colour | yellow/green | |
| Height | 49.6 mm | |
| Length | 100.8 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
