3212444 | Phoenix Contact

Double level terminal, push-in connection, 0.14-1.5 mm², 4 pole, 16 A, 6 kV, black, 3212444

Order No.: 60P3670
EAN: 4055626012834
MPN:
3212444
PTTB 1,5/S/2P BK
Series: PTTB
3212444 Phoenix Contact Series Terminals

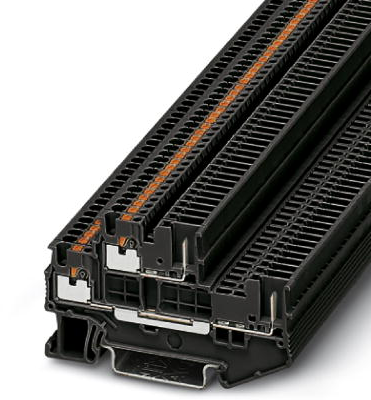

Image may differ
Unit Price (€ / pc.)
1.9754 € *
Available: 0 pcs.
Available in 10 days: 400 pcs.
Leadtime: 1 Week **
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9754 €
10 pcs.
1.8207 €
50 pcs.
1.6541 €
100 pcs.
1.4875 €
*incl. VAT plus shipping costs
**Subject to prior sale

Double level terminal block, 3212444, Phoenix Contact

Double-level terminal block, rated voltage: 500 V, nominal current: 16 A, connection method: Push-in / plug connection, 1st and 2nd level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: black.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
  • Tested for railway applications
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 4
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 26 bis 16
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 3.5 mm
Farbe schwarz
Höhe 42.6 mm
Länge 69.3 mm
Leiterquerschnitt 0,14-1,5 mm²
Nennstrom 16 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
