3212550 | Phoenix Contact
Plug, push-in connection, 0.14-1.5 mm², 5 pole, 17.5 A, 6 kV, yellow/green, 3212550
Unit Price (€ / pc.)
3.5700 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

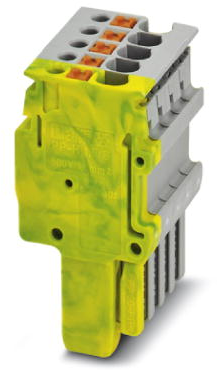

Plug, 3212550, Phoenix Contact
Plug, rated voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², color: gray/green-yellow.
Features
- Large-surface labeling option
- The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
- Tested for railway applications
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 5 | |
| Version | plug | |
| AWG cross-section | AWG 26 to 14 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 17.5 mm | |
| Colour | yellow/green | |
| Height | 31.3 mm | |
| Length | 16.5 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated current | 17.5 A | |
| Pin number | 5 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
