3212578 | Phoenix Contact

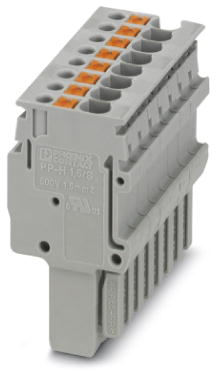

Plug, push-in connection, 0.14-1.5 mm², 8 pole, 17.5 A, 6 kV, gray, 3212578

Order No.: 60P2203
EAN: 4046356565714
MPN:
3212578
PP-H 1,5/S/8
Series: PP-H
Phoenix Contact
3212578 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
6.8306 € *
Available: 9 pcs.
Available in 10 days: 8,730 pcs.
Leadtime: 2 Weeks **
Total Price:
6.83 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8306 €
10 pcs.
6.2832 €
50 pcs.
5.7120 €
100 pcs.
5.1408 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug, 3212578, Phoenix Contact

Plug, rated voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm²  - 1.5 mm², mounting type: Plug-in mounting, color: gray.

Features

  • Large-surface labeling option
  • The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
  • Tested for railway applications
Technical specifications
Connection push-in connection
Number of terminals 8
Version plug
AWG cross-section AWG 26 to 14
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 28 mm
Colour gray
Height 31.3 mm
Length 16.5 mm
Cable cross-section 0.14-1.5 mm²
Rated current 17.5 A
Pin number 8 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
