3213139 | Phoenix Contact
Bolt terminal, bolt connection, 2.5-70 mm², 1 pole, 192 A, 8 kV, yellow/black, 3213139
Unit Price (€ / pc.)
16.9456 € *
Available: 0 pcs.
Available in 10 days: 125 pcs.
Leadtime: 1 Week **
Total Price:
16.95 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9456 €
10 pcs.
15.5890 €
50 pcs.
14.1848 €
100 pcs.
12.7687 €
*incl. VAT plus shipping costs
**Subject to prior sale

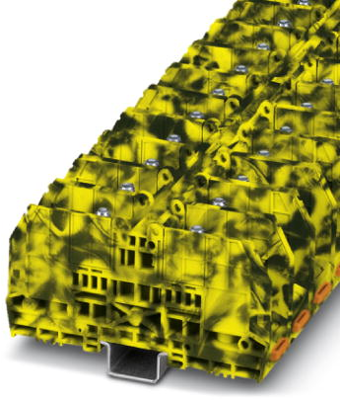

Bolt connection terminal block, 3213139, Phoenix Contact
Bolt connection terminal block, rated voltage: 1000 V, nominal current: 192 A, connection method: Bolt connection, 1 level, Rated cross section: 70 mm², mounting type: NS 35/7,5, NS 35/15, direct screw connection, color: black/yellow.
Features
- Mounting on standard DIN rails or directly in control boxes
- Tested for railway applications
Technical specifications
| Anschluss | Bolzenanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Bolzenklemme | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 29 mm | |
| Farbe | gelb/schwarz | |
| Höhe | 66 mm | |
| Länge | 136 mm | |
| Leiterquerschnitt | 2,5-70 mm² | |
| Nennstrom | 192 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
