3213143 | Phoenix Contact

Potential collecting terminal, screw connection, 16-95 mm², 1 pole, 192 A, 8 kV, blue, 3213143

Order No.: 60P5350
EAN: 4046356817837
MPN:
3213143
UKH 70/4X10 BU
Series: UKH
Phoenix Contact
3213143 Phoenix Contact Series Terminals

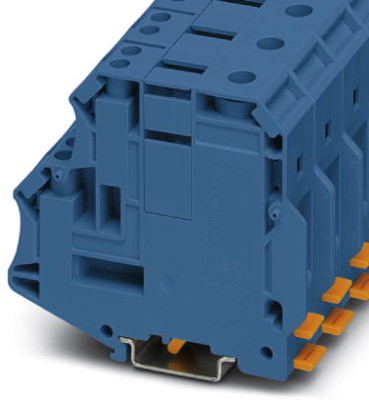

Image may differ
Unit Price (€ / pc.)
27.0963 € *
Available: 0 pcs.
Available in 10 days: 858 pcs.
Leadtime: 1 Week **
Total Price:
27.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
27.0963 €

Potential collective terminal, 3213143, Phoenix Contact

Potential collective terminal, rated voltage: 1500 V, nominal current: 192 A, connection method: Screw connection, cross section: 16 mm²  - 95 mm², Screw connection, cross section: 1.5 mm²  -  16 mm², mounting type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32, color: blue.

Features

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 5
Ausführung Potenzialsammelklemme
AWG-Leiterquerschnitt AWG 4 bis 3/0
Bemessungsspannung 1500 V
Bemessungsstoßspannung 8 kV
Breite 20.3 mm
Farbe blau
Höhe 79.4 mm
Länge 88.5 mm
Leiterquerschnitt 16-95 mm²
Nennstrom 192 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
